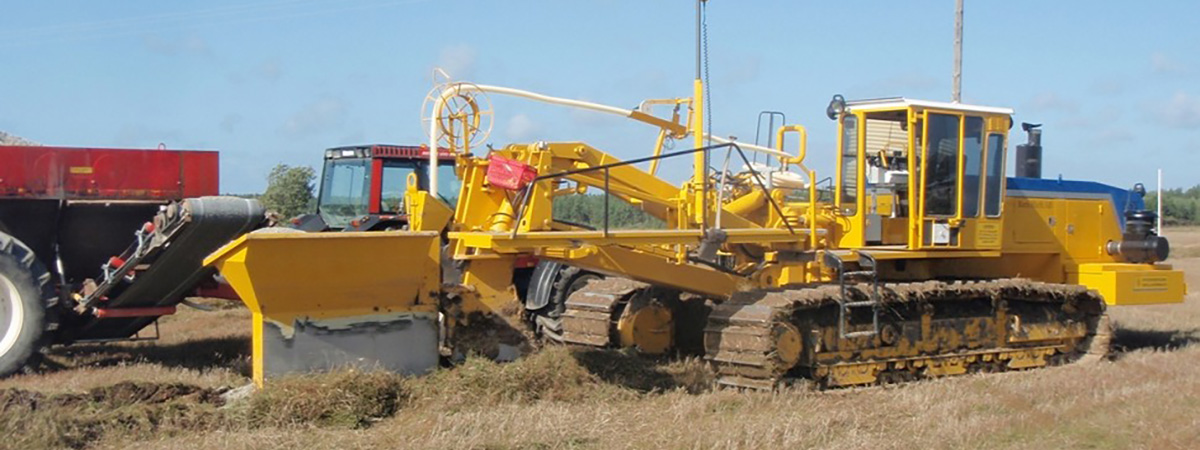

Trenchless: BSY 4000

Engine
Brand Scania
Type DC13
Stage  Stage IV Final
Power 331 kW / 450 hp

Undercarriage
Drive line Hydrostatic drive systeem - GPS prepared
Tracks  Oscillating with D7 chain
Track Rollers Lifetime lubricated
Track Pads 800 mm - bulldozer blades

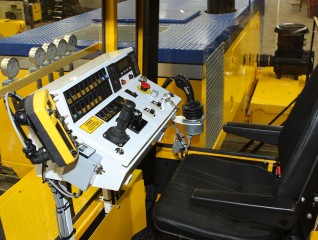

Control by means of electric joysticks - high / low - load control
Travel speed 0 - 5.000 m/hours

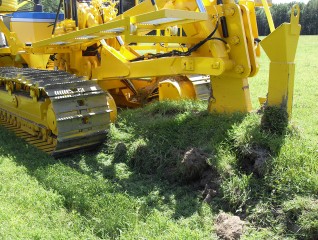

Plow mechanism
Plow Delta or straight plow
Pipe diameter 200 mm
Depth range 2.000 mm
Max. trench depth 2.000 mm
Control by laser or GPS

Dimensions
Length 12.000 m
Width 3.000 m
Height 3.150 m
Weight 30 tonne


Options
- Engine speed 1.600 rpm
- Travel speed up to 8.000 m/hour
- Double linkage plow mechanism
- Temperature controlled fan, self cleaning
- Automatic greasing system
- Storage platform for pipe coils
