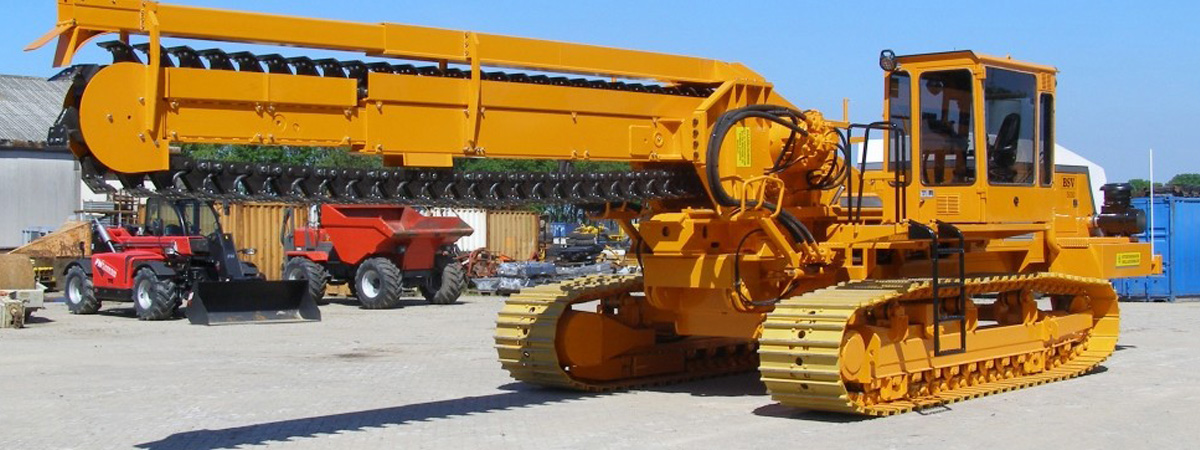

Deep Trenching: BSV 5000

Engine
Brand Scania
Type DC13
Stage  Stage IV Final
Power 405 kW / 550 hp

Undercarriage
Drive line Hydrostatic drive systeem - GPS prepared
Tracks  Oscillating with D5B chain
Track Rollers Lifetime lubricated
Track Pads 800 mm - triple grouser

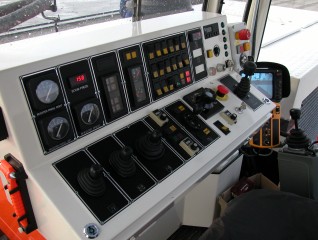

Control by means of electric joysticks - high / low - load control
Travel speed 0 - 5.000 m/hours

Trenching System
Drive line Hydrostatic drive system - GPS or laser prepared

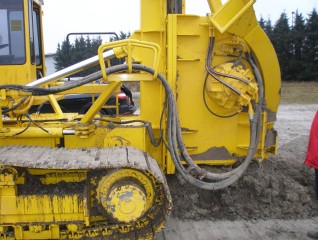

Hydraulic motors 2x high torque motors - 2000 cc
Final drive  Lifetime seals
Trench width 280 - 320 mm
Min. trench depth 2.000 mm
Max. trench depth 6.000 mm
Control by means of electric joystick - stepless adjustable
Digging speed  0 - 5.000 m/s

Dimensions
Length 12.500 m
Width 3.000 m
Height 3.150 m
Weight 33 tonne


Options
- Engine speed 1.600 rpm
- Hydraulically extendable tracks
- Temperature controlled fan, self cleaning
- Automatic greasing system

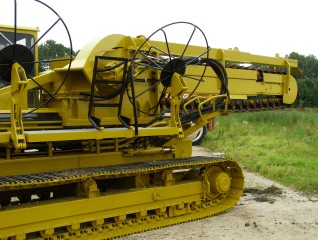

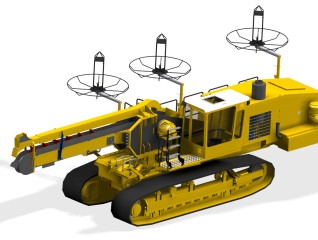

- Storage platform for pipe coils
