| Engine |
|---|
| Brand |
Scania |
| Type |
DC09 |
| Stage |
Stage IV Final |
| Power |
257 kW / 350 hp |
| Undercarriage |
|---|
| Drive line |
Hydrostatic drive systeem - GPS prepared |
| Tracks |
Oscillating with D4 chain |
| Track Rollers |
Lifetime lubricated |
| Track Pads |
800 mm - triple grouser |
| Control |
by means of electric joysticks - high / low - load control |
| Travel speed |
0 - 5.000 m/hours |

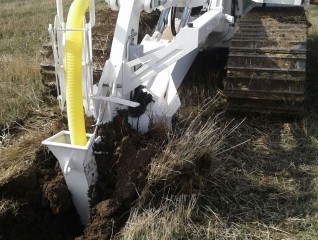

| Plow mechanism |
|---|
| Plow |
Delta or straight plow |
| Pipe diameter |
100 mm |
| Depth range |
2.000 mm |
| Max. trench depth |
2.000 mm |
| Control |
by laser or GPS |
| Dimensions |
|---|
| Length |
12.000 m |
| Width |
3.000 m |
| Height |
3.150 m |
| Weight |
20 tonne |
Options
- Engine speed 1.600 rpm
- Travel speed up to 8.000 m/hour
- Double linkage plow mechanism
- Temperature controlled fan, self cleaning
- Automatic greasing system
- Storage platform for pipe coils
